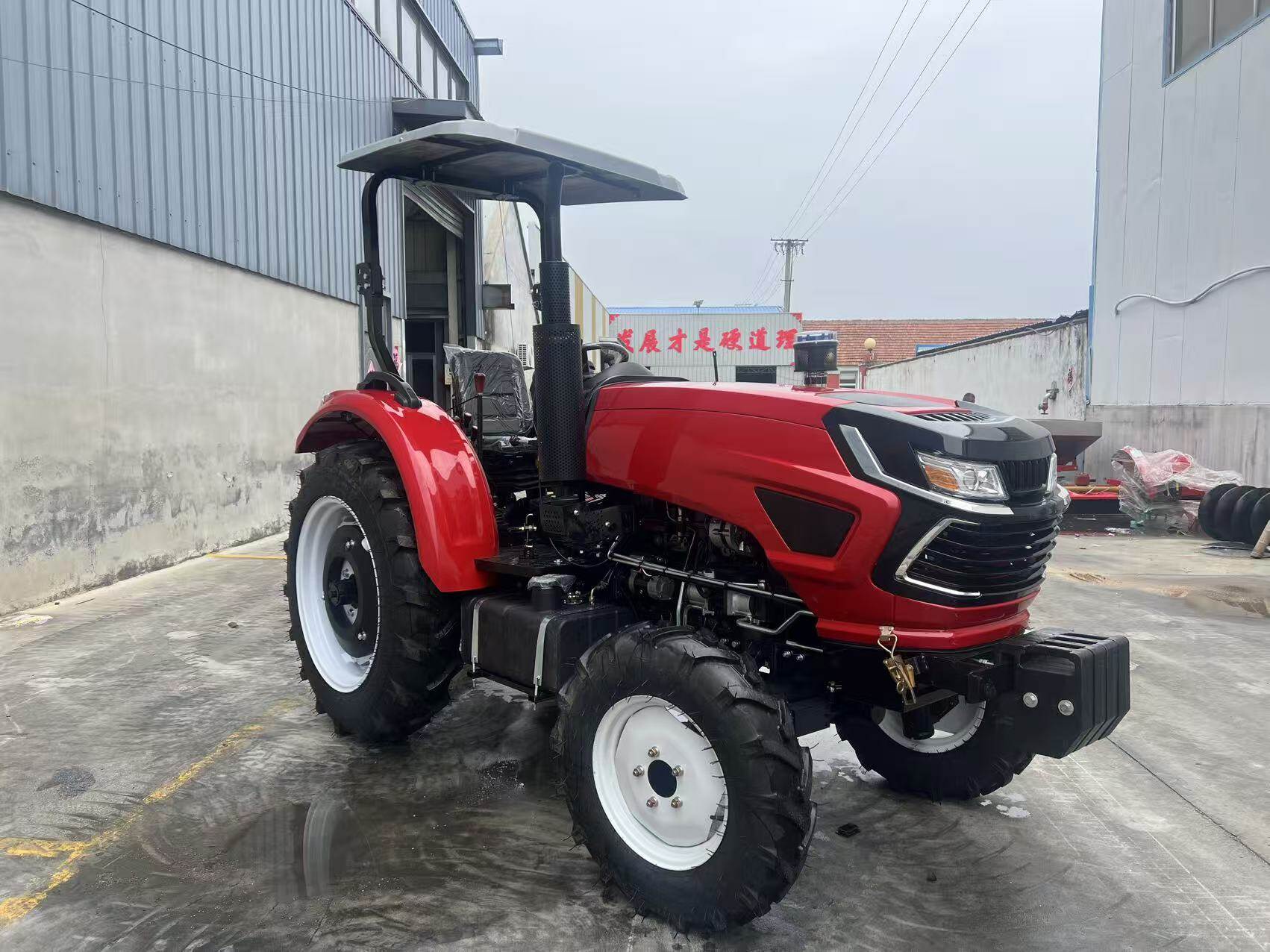

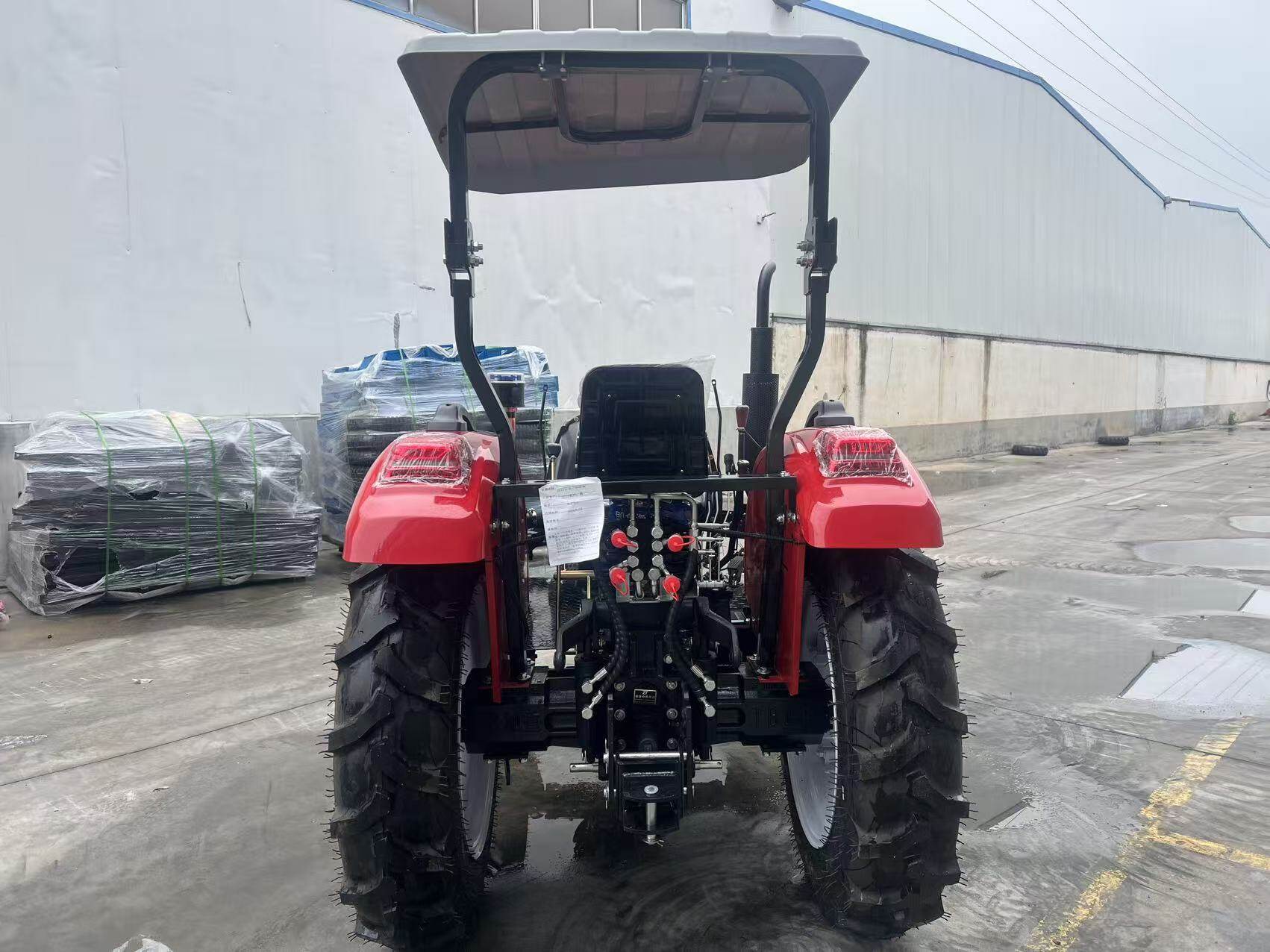

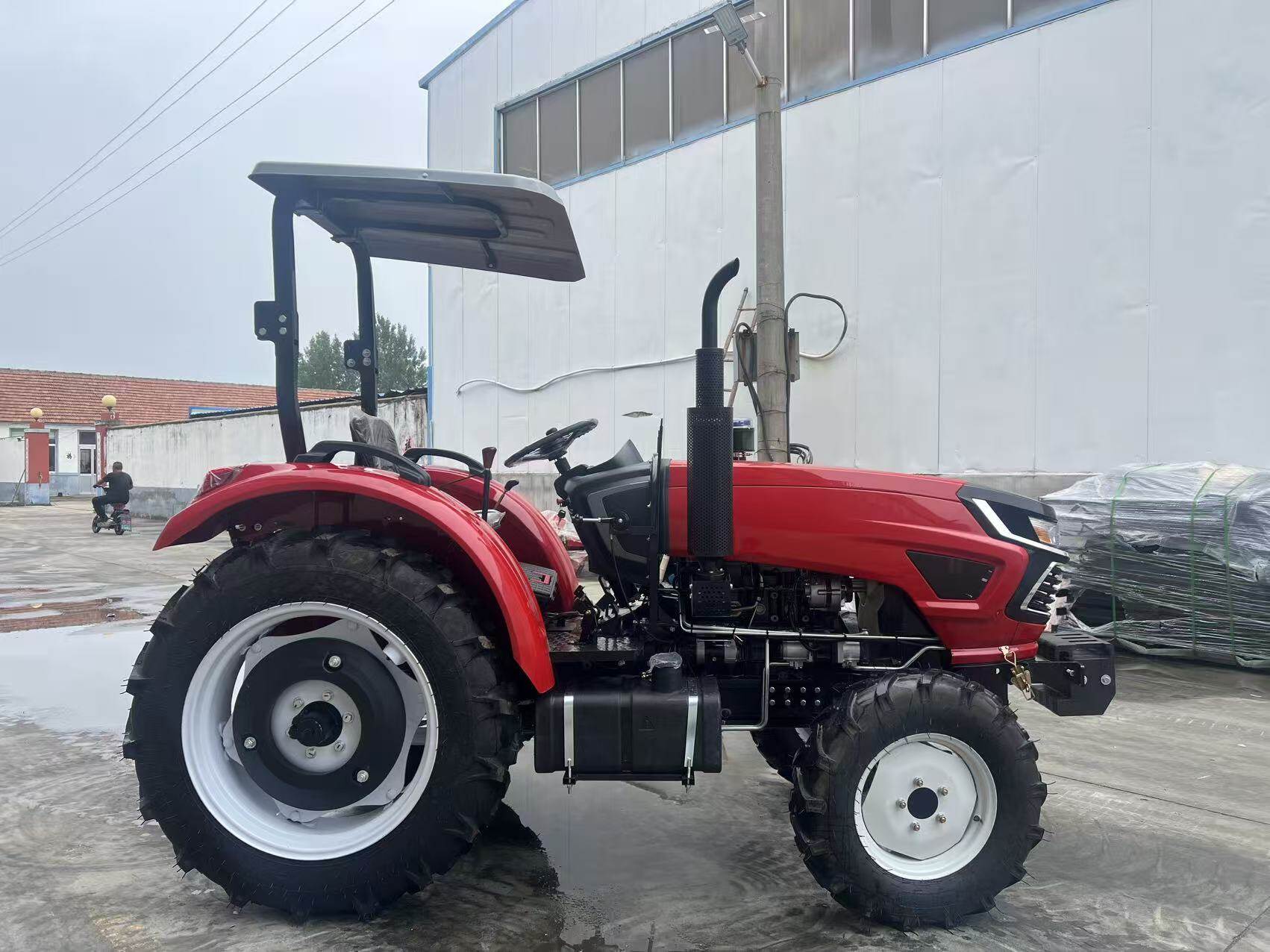

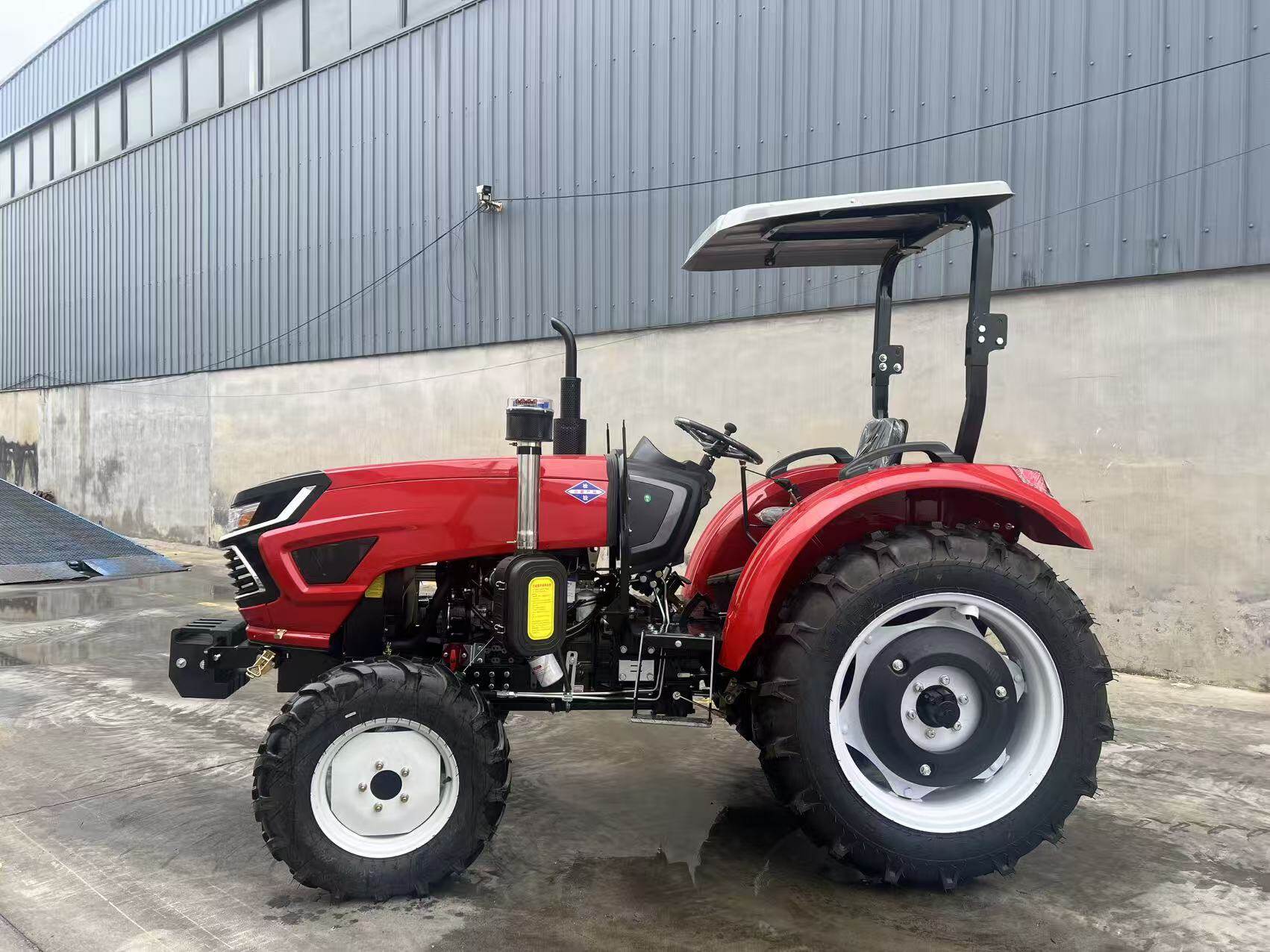

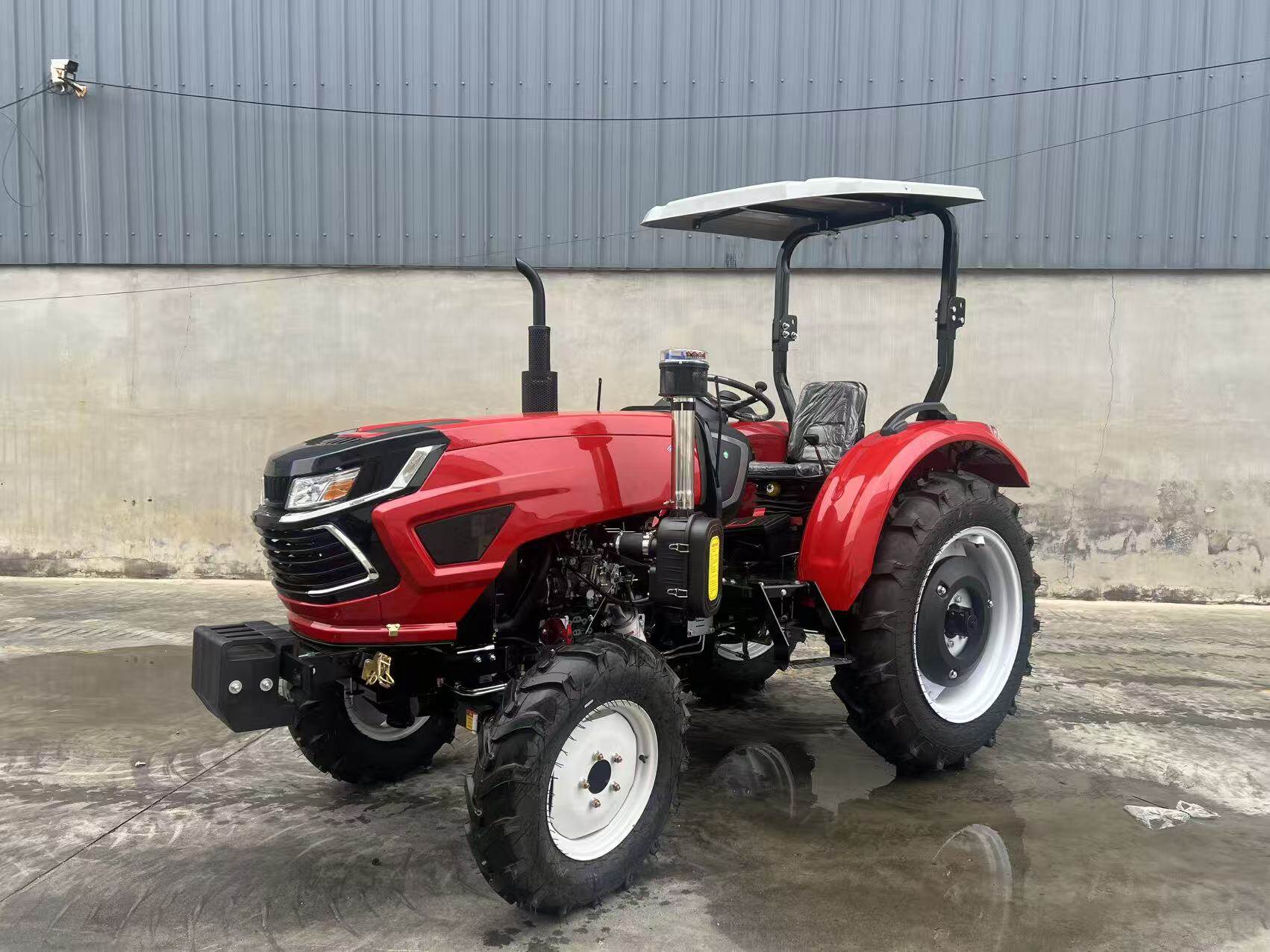

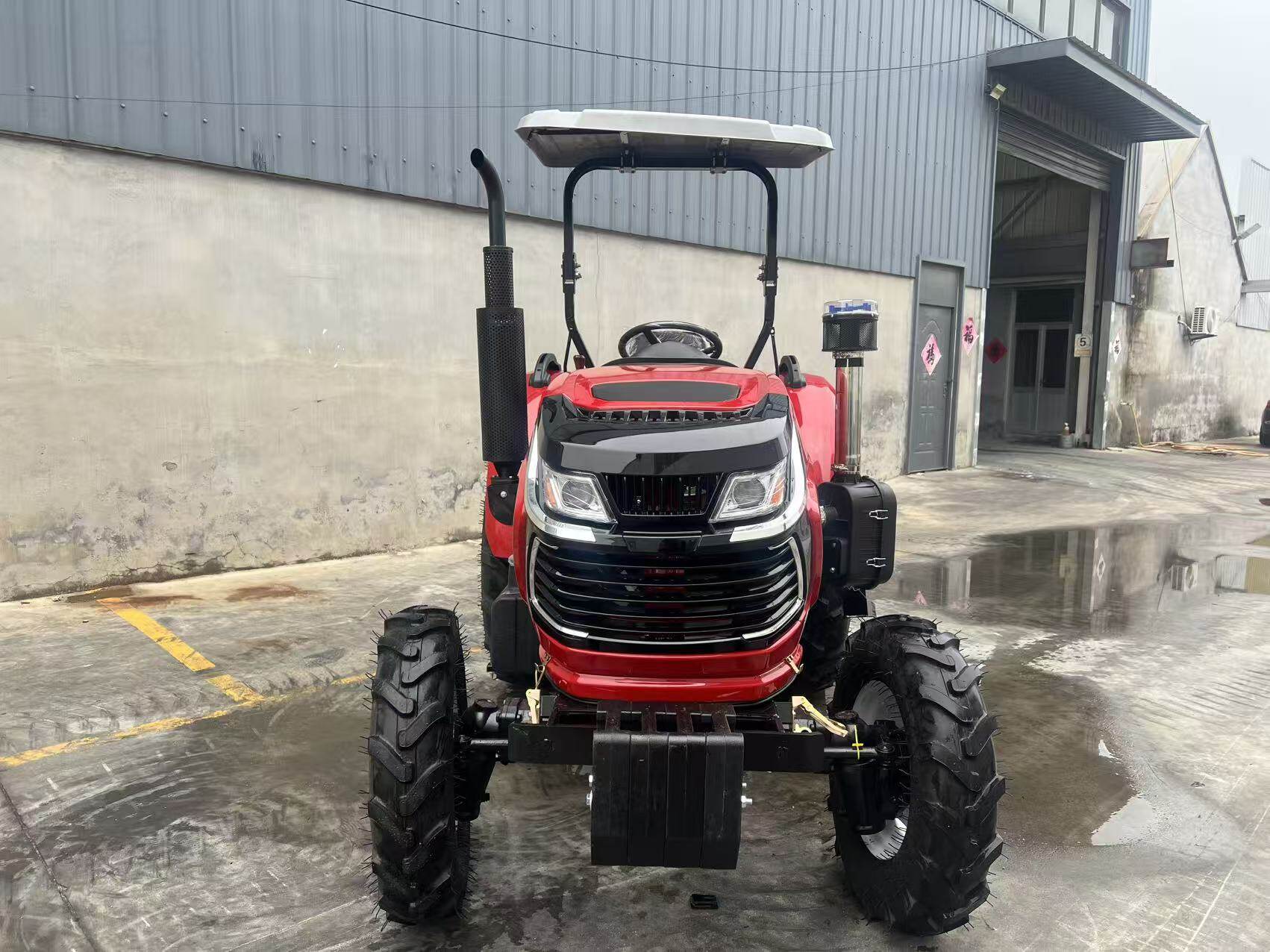

504 Tractor
The 504 is a versatile 50HP 4WD farm tractor designed for plowing, rotary tilling, transportation, mowing and other agricultural tasks. With strong traction, hydraulic steering and a versatile rear PTO system, it can work with a wide range of agricultural implements. Suitable for farms, orchards, fields and general agricultural applications.
Introduction
Built with a proven design and reliable components for stable, long-term operation. Powerful 50 HP performance delivers strong traction and efficient operation across a wide range of agricultural tasks. Durable chassis and robust hydraulic system provide dependable performance for plowing, tilling, hauling and other demanding jobs. Comfortable operator station with practical controls improves ease of operation during long working hours. Versatile three-point hitch and PTO system support a wide range of agricultural implements for greater flexibility. Balanced performance, durability and investment cost make the 504 an ideal choice for farms and agricultural businesses.
Specifications
Parameter | Value | Parameter | Value |
|---|---|---|---|
Drive Type | 4WD | Steering Type | Hydraulic Steering |
Engine | Weifang 490 Naturally Aspirated Diesel Engine | Hydraulic Output | 2 Groups |
Engine Power | 36.8 kW (Approx. 50 HP) | Gears | 8+8 |
Clutch | Single-Acting | Speed Range | Forward 1–30 km/h; Reverse 1–28 km/h |
PTO Speed | 540/760 rpm | Tire Size | Front 6.5-16; Rear 11.2-24 |
PTO Spline | 6 Splines | Wheelbase | 1750 mm |
Rated Traction Force | ≥10 kN | Overall Dimensions (L×W×H) | 3200×1500×1930 mm |
Operating Weight | 1350 kg |
