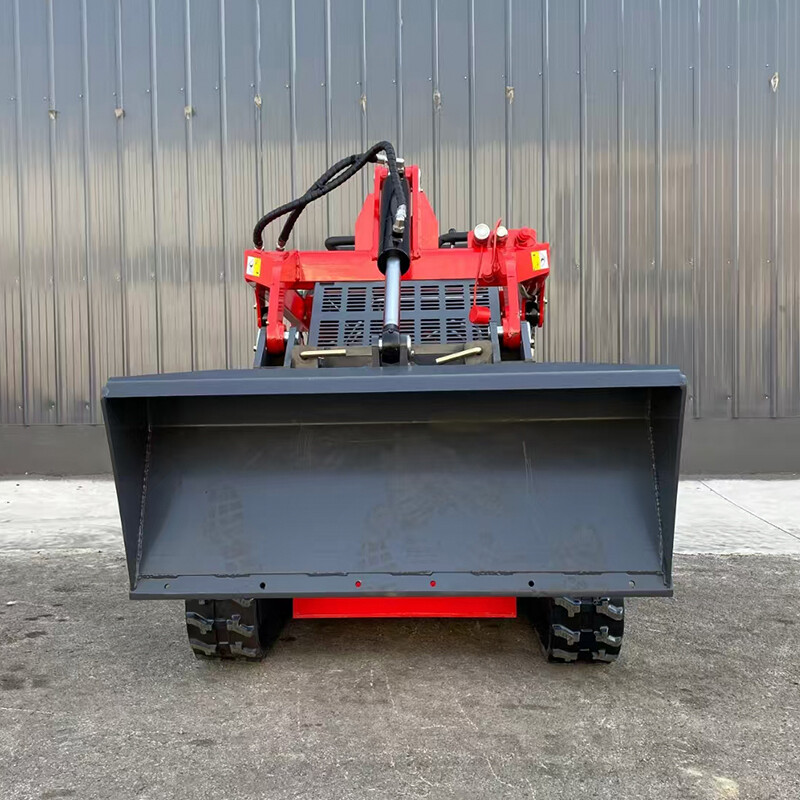

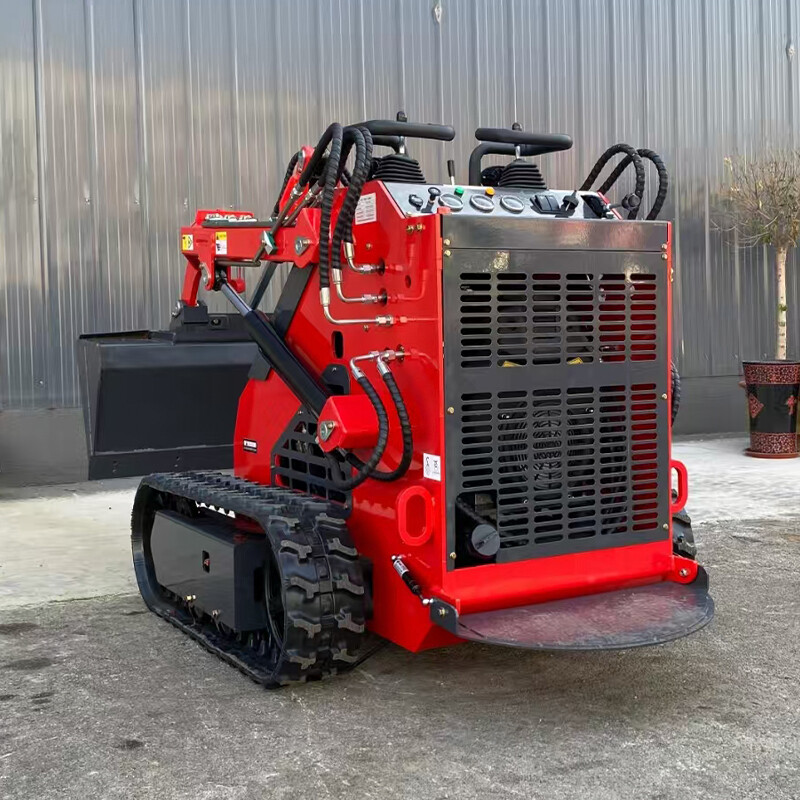

M390
Compact Size, Big Capability.
Introduction

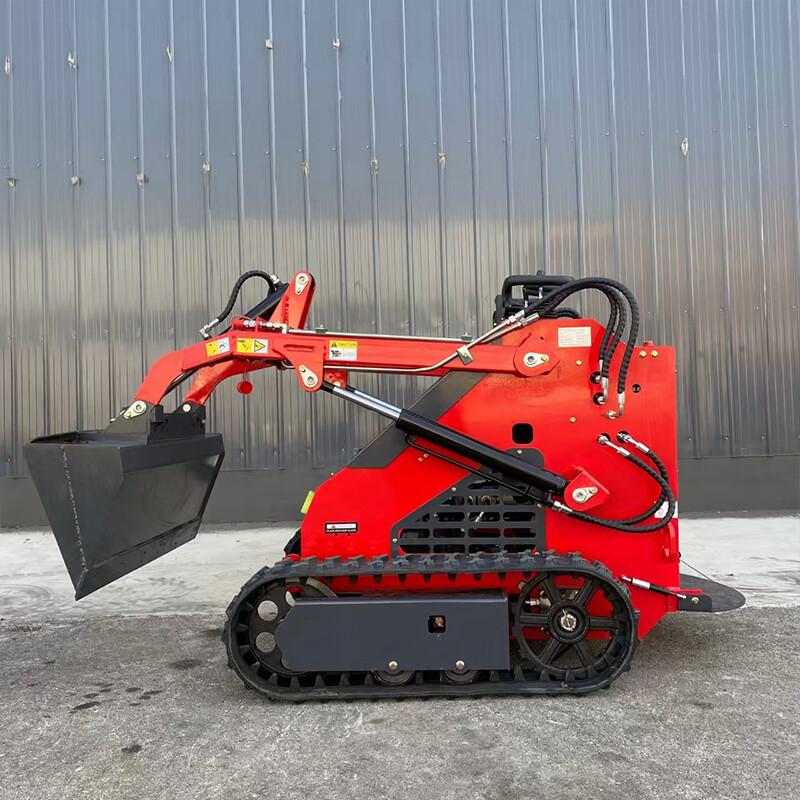

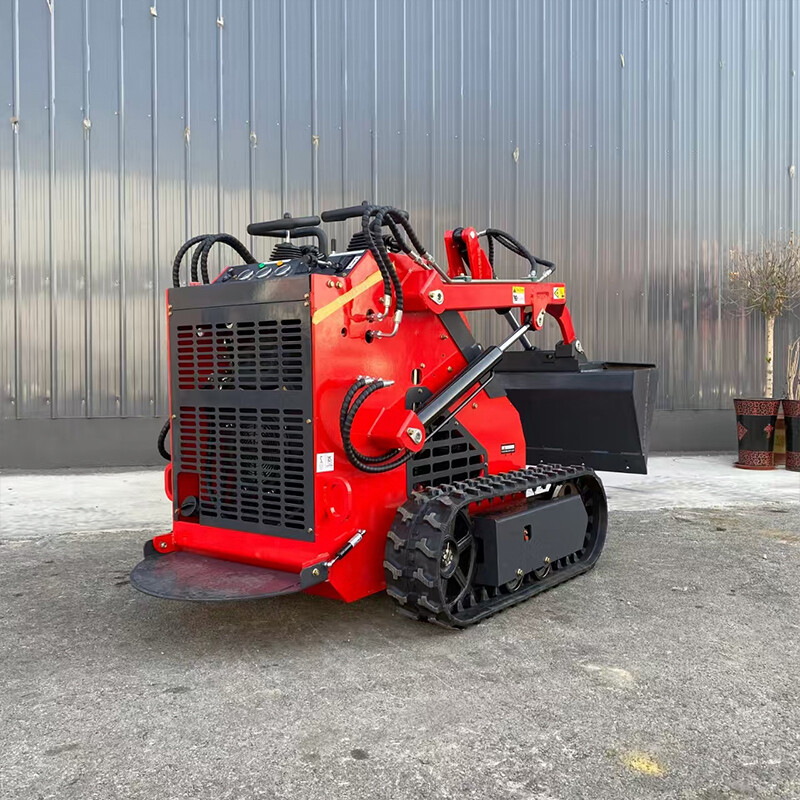

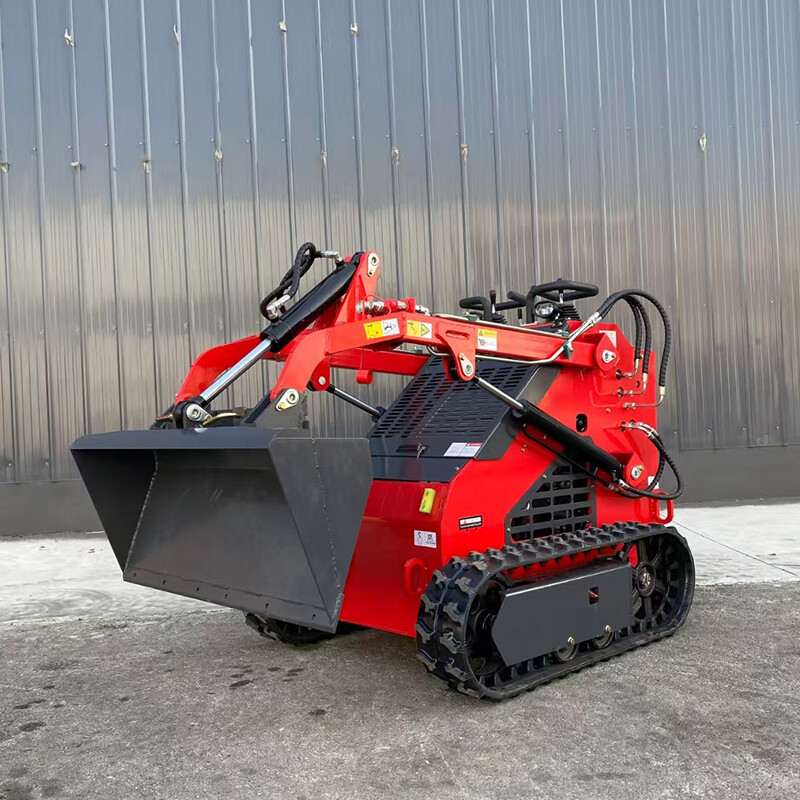

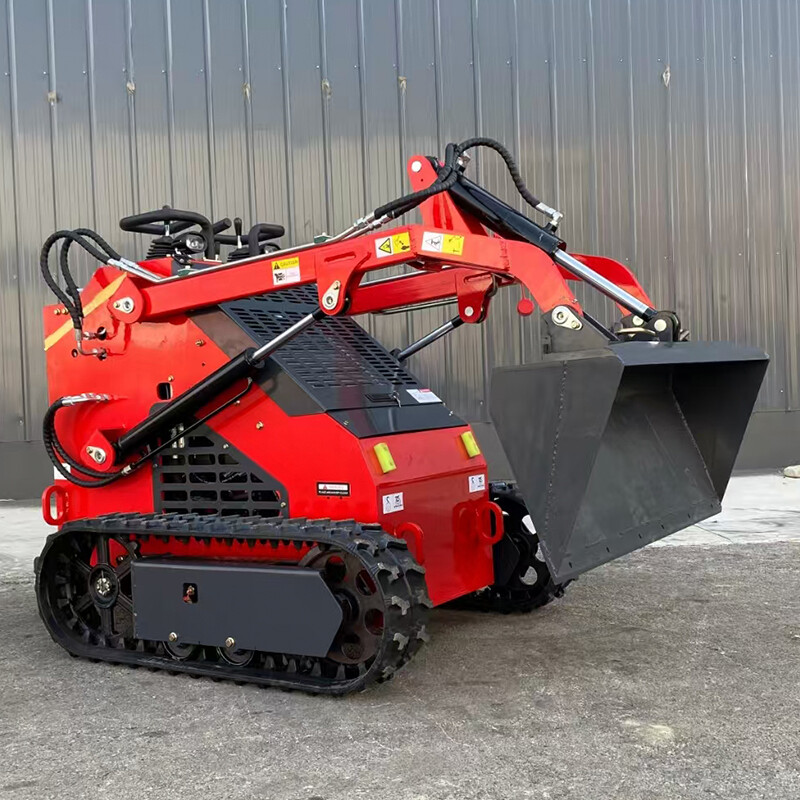

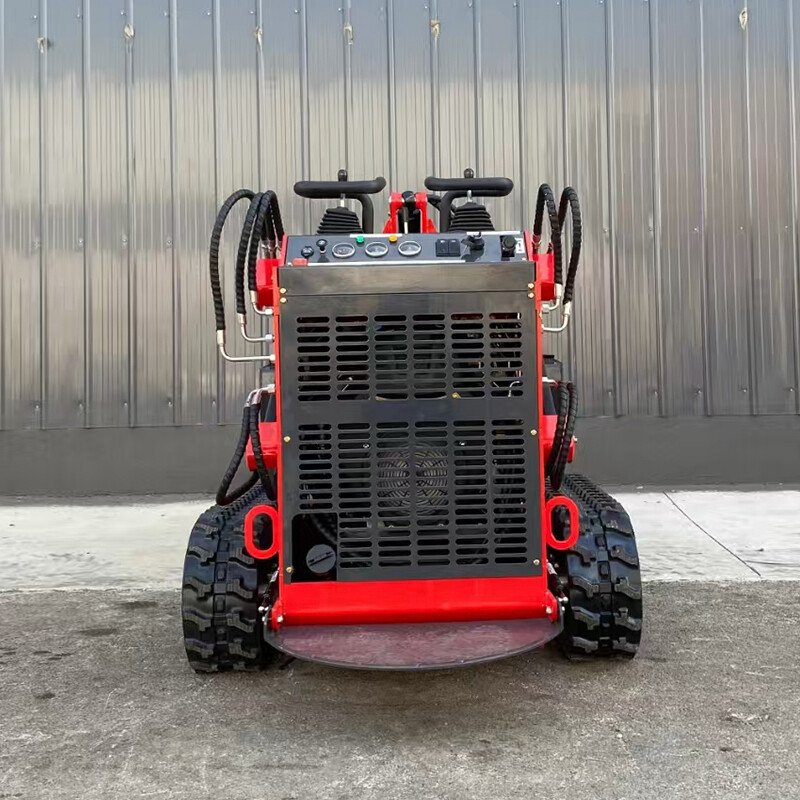

Compact tracked skid steer with excellent maneuverability for confined job sites. 200 kg rated load capacity with a 0.12 m³ bucket for efficient material handling. Wide rubber tracks provide superior traction and stability on rough terrain. 11.4 HP engine delivers reliable performance with low operating costs.
Specifications
Parameter | Value | Parameter | Value |
Model | M390 | Engine | Rato R420D |
Rated Power | 15 HP | Rated Load | 200 kg |
Bucket Capacity | 0.12 m³ | Bucket Width | 1000 mm |
Travel Speed | 0–6 km/h | System Pressure | 17 bar |
Operating Weight | 900 kg | Track Size | 180 × 72 × 45 mm |
Max Operating Height | 2580 mm | Bucket Pin Height | 1940 mm |
Dump Height | 1435 mm | Dump Reach | 605 mm |
Key Features
CE Certified
Meets European safety standards
Fuel Efficient
Advanced engine technology
24/7 Support
Round-the-clock technical assistance
