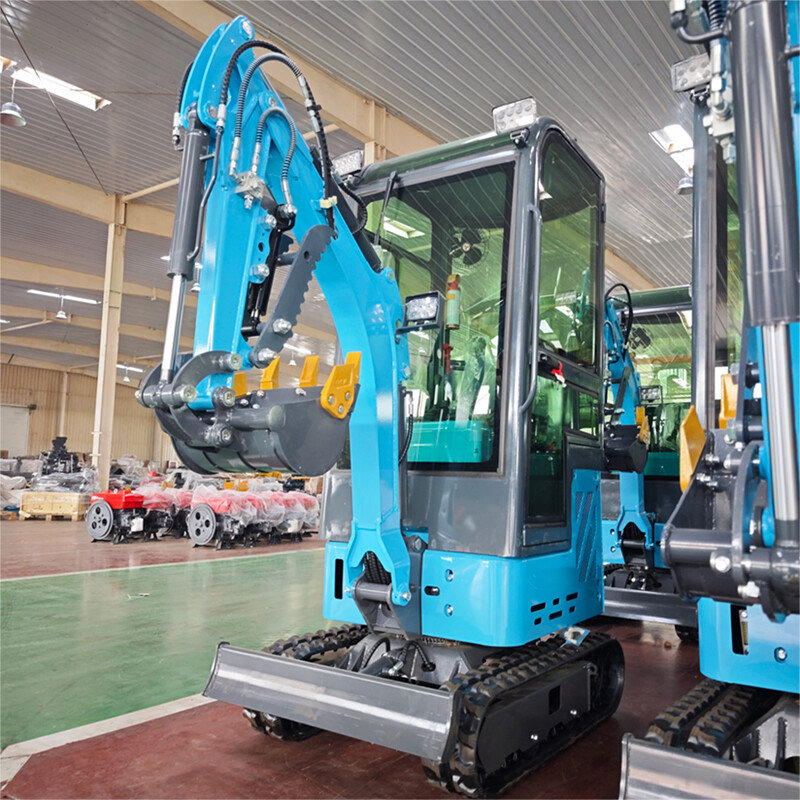

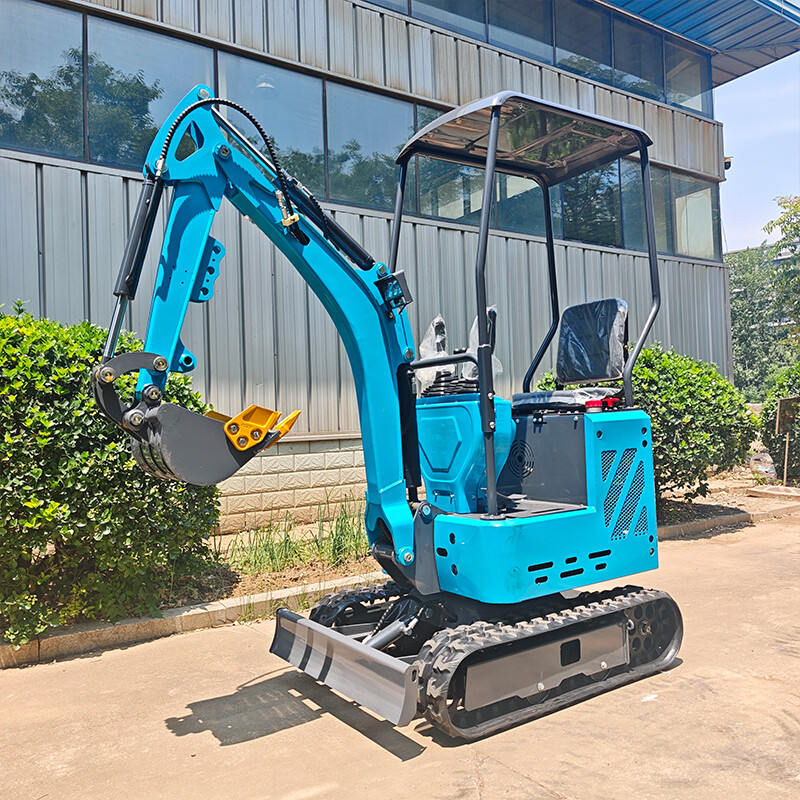

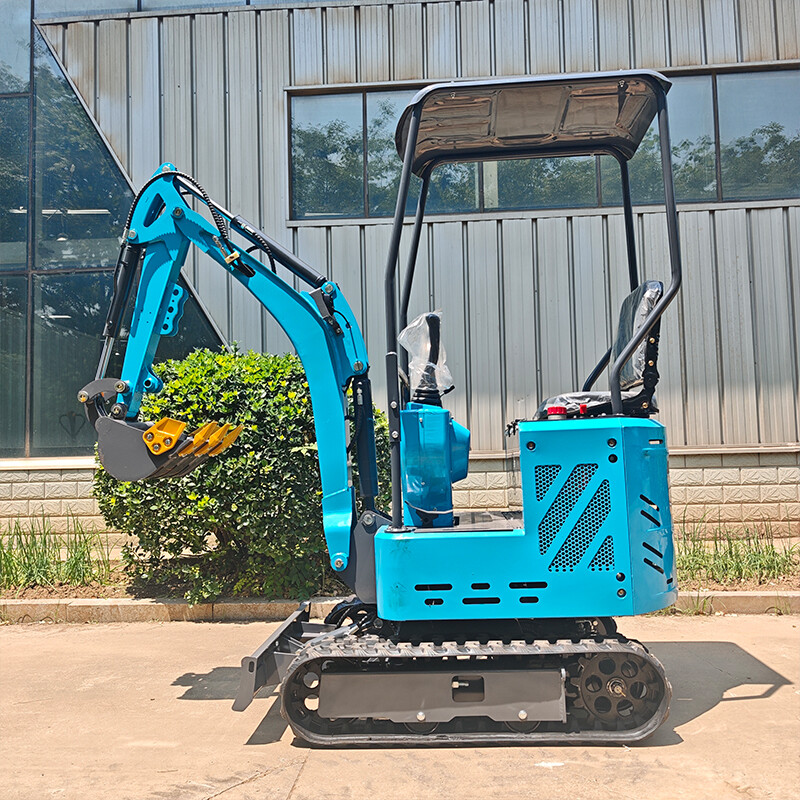

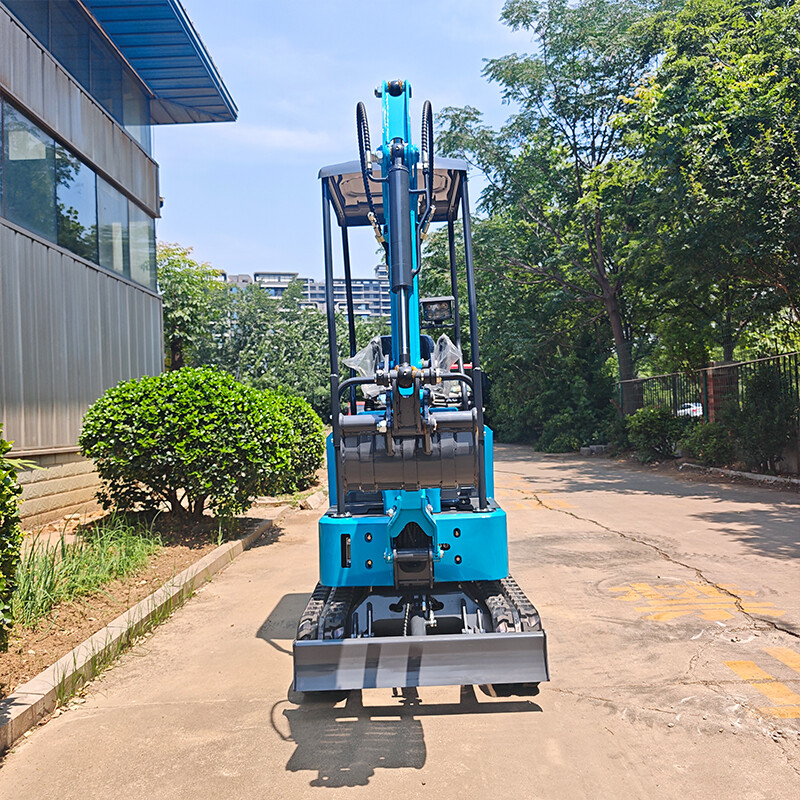

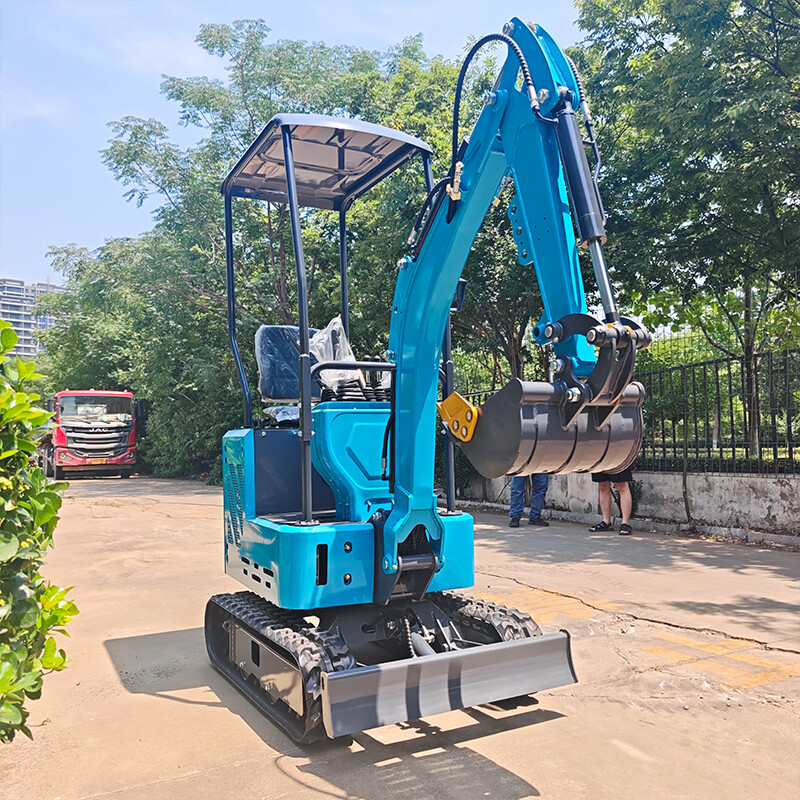

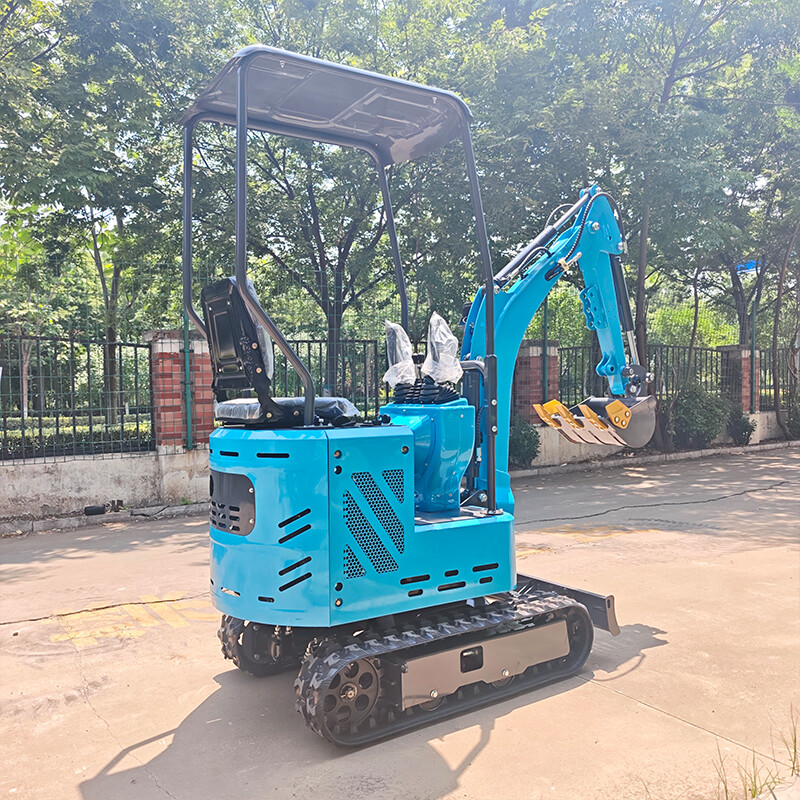

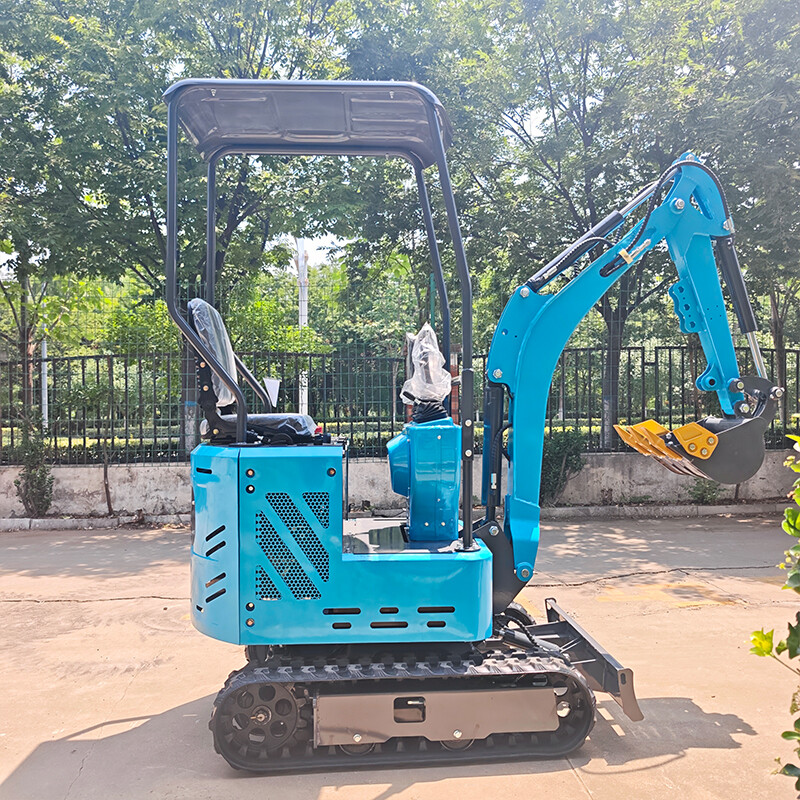

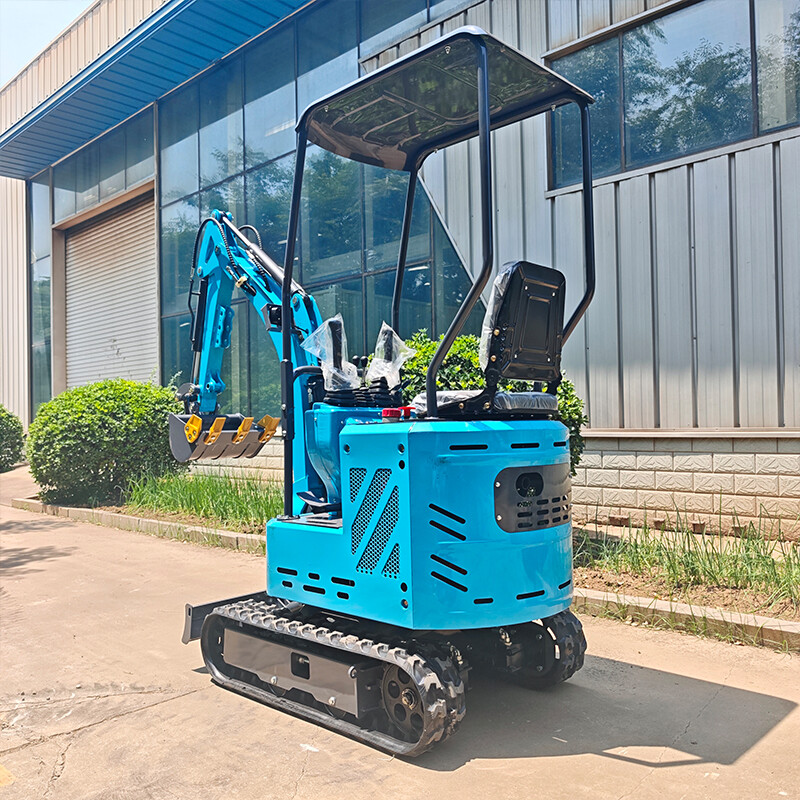

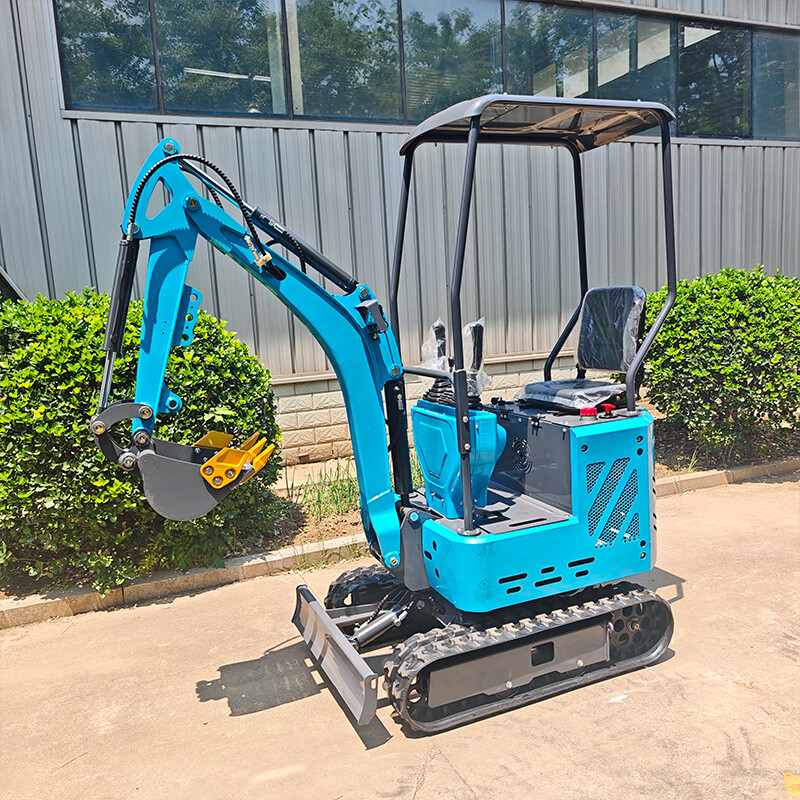

M12
Mid-size muscle for fast excavation and backfill.
Introduction

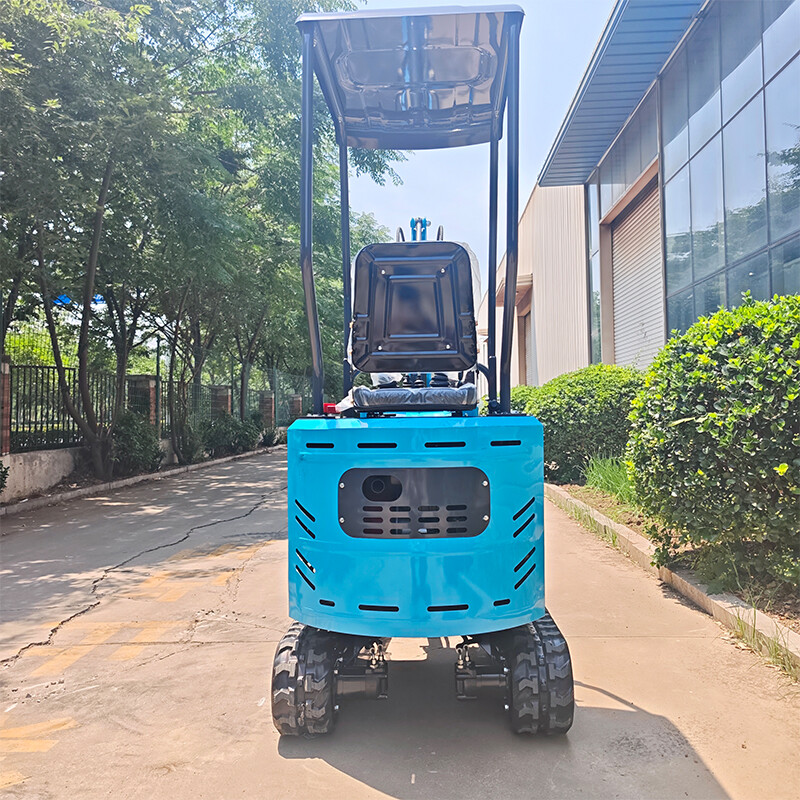

Tilting rear cab design allows easy access to key components, improving maintenance efficiency and reducing service cost. Top-mounted boom cylinder increases digging depth and reduces damage risk for better durability. Hidden hydraulic hoses improve protection and reliability by preventing external wear. Expandable undercarriage with removable canopy ensures stability and access in narrow or low-clearance sites.
Specifications
Parameter | Value | Parameter | Value |
Operating Weight | 1100 kg | Gradeability | 30° |
Bucket Capacity | 0.025 m³ | Max Dig Height | 2600 mm |
Overall Dim | 2750×930×2180 mm | Max Dump Height | 1750 mm |
Fuel Tank | 5.5 L | Max Dig Reach | 2700 mm |
Hydraulic Tank | 18 L | Max Dig Depth | 1600 mm |
Work Pressure | 16 MPa | Hydraulic Flow | 23.4 L/min |
Engine | Yanmar | Track Width | 230 mm |
Key Features
CE Certified
Meets European safety standards
Fuel Efficient
Advanced engine technology
24/7 Support
Round-the-clock technical assistance
